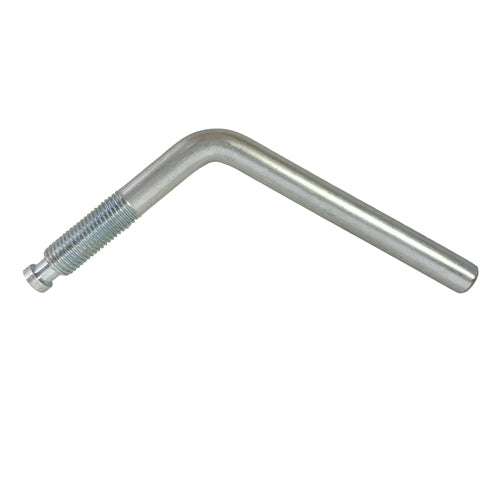

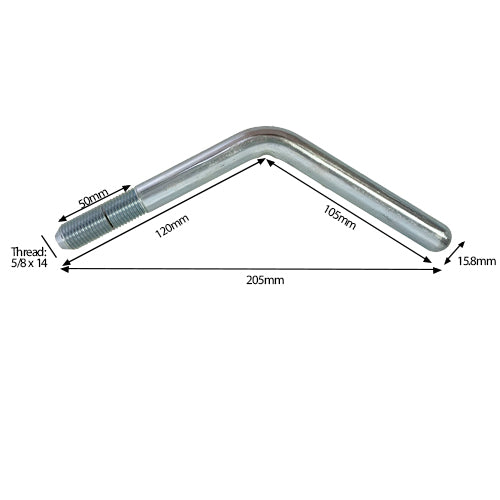

• Jockey wheel clamp handle
• Suitable for Bradley HU12 3500kg coupling
• 5/8 x 14 thread

Price: £5.00 + VAT

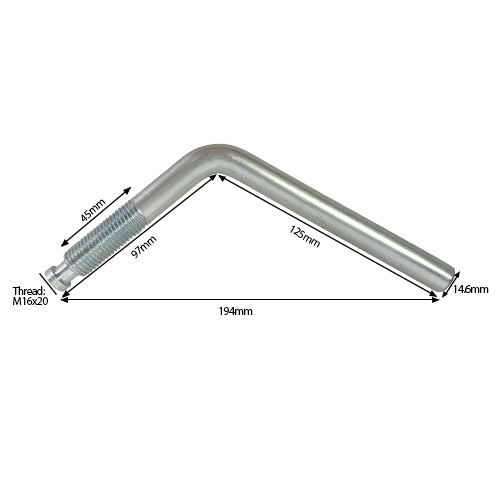

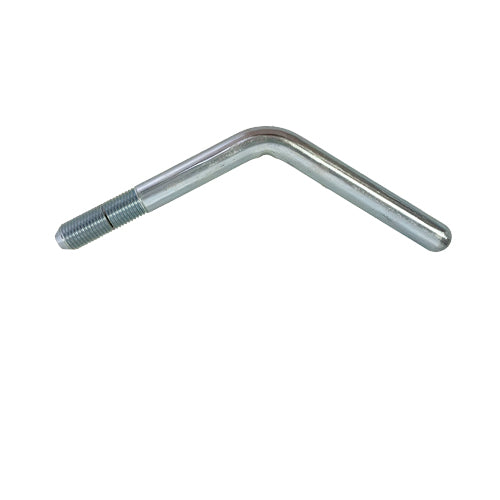

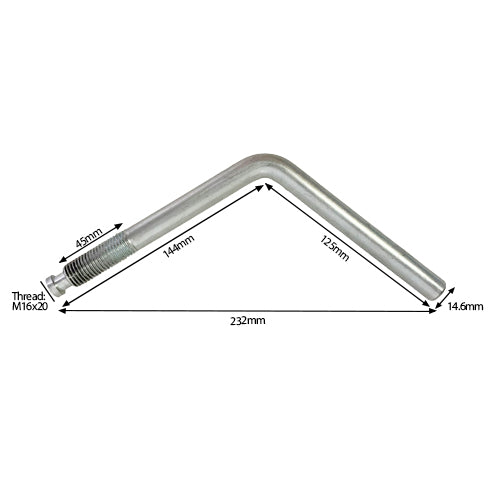

• Extended length jockey wheel clamp handle
• Suitable for Knott couplings up to 3500kg including KF7.5, KF13, KF13E, KF17, KF20, KFG20, KRV20, KFG27, KFG35
• M16 x 60 thread

Price: £5.00 + VAT

• Standard length jockey wheel clamp handle
• Suitable for Knott couplings up to 3500kg including KF7.5, KF13, KF13E, KF17, KF20, KFG20, KRV20, KFG27, KFG35
• M16 x 60 thread

Price: £5.00 + VAT

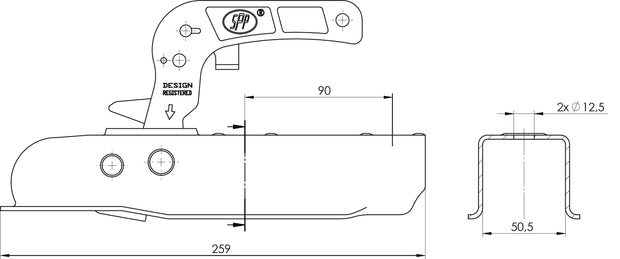

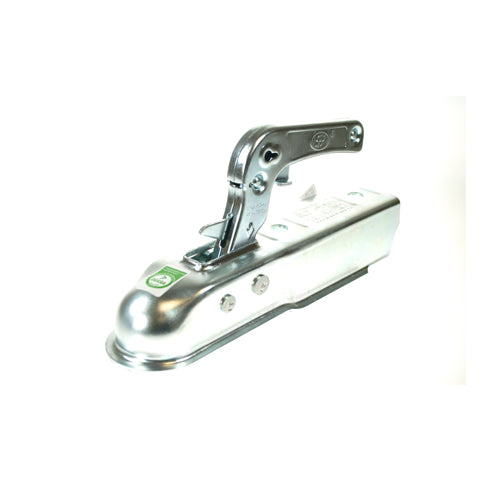

MP80 Pressed Steel 50mm Coupling for 50mm Square Tube Drawbars

• Requires 2 x M12 bolts (min 8.8)
• Application unbraked trailers, 750kg max
• The most widely used unbraked coupling on the market
• Suitable for use as a replacement for:
  • Knott KQ7K
  • AL-KO AK7D
  • Ifor Williams PO0355
  • Maypole unbraked trailers with 50mm drawbar
• Pressed steel construction, zinc plated finish
• 90mm mounting hole centres in top surface
• R55 approved (D7.2, S75)
• With wear and correct attachment indicator
• Supplied without lock

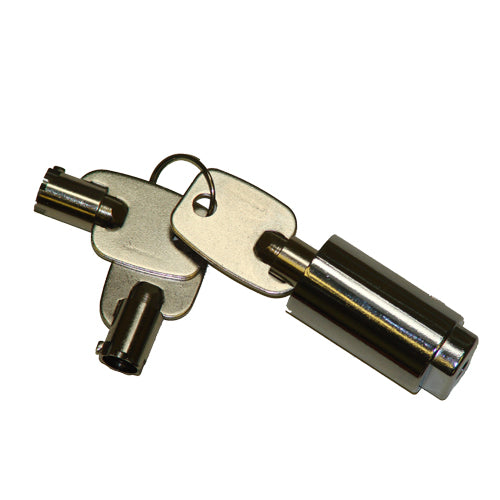

• Integral coupling lock for Bradley couplings and Auto Jaw
• Suitable for Bradley coupling heads including D201CA
• Includes:
  • High security integral lock
  • 4 keys
  • Key ring
  • Key documentation
• Supplied with 2 years warranty

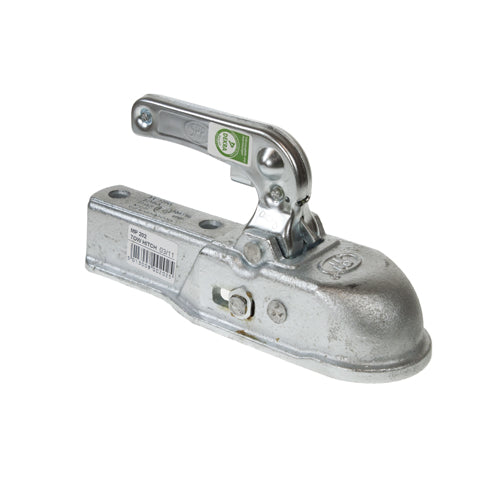

Heavy Duty Cast Steel 50mm Coupling for min 50mm Square Tube Drawbars

• 2 x M12 bolts (min 8.8)
• Max 750kg (highway use) and 1200kg (non-highway use)
• Ideal for applications where a heavy duty unbraked coupling is required
• Suitable for use as an alternative for:
  • Bradley D201
  • Knott BQ27
  • Indespension CP004 & CP240
• Heavy duty cast steel construction with reinforced pressed steel handle, zinc plated finish
• 76mm mounting hole centres in top surface
• R55 approved (D11.3, S120)
• With colour-coded wear and correct attachment indicator
• Supplied without lock.

Price: £40 + VAT

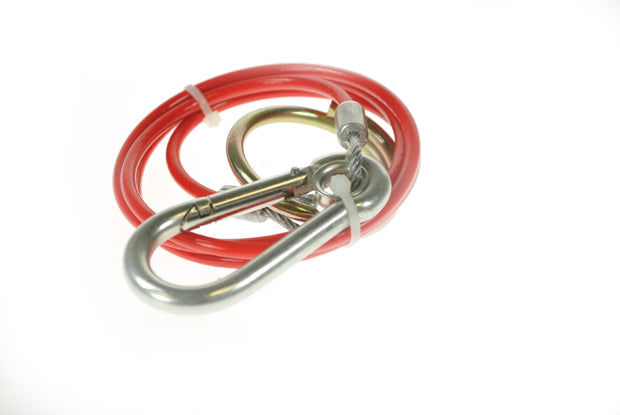

• Red breakaway cable suitable for braked trailers and caravans
• 3mm x 1m red PVC coating
• Vehicle fitting: carabiner
• Trailer fitting: burst ring

Price: £5 + VAT

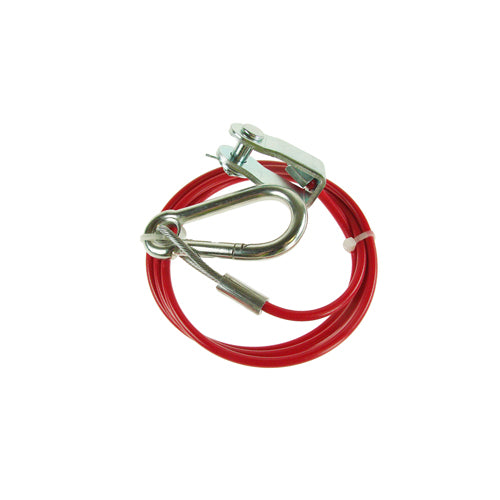

• Red PVC breakaway cable fitted with a clevis and pin instead of a split ring
• Suitable for Ifor Williams applications
• Red PVC cable
• 1m x 3mm
• Vehicle fitting: carabiner

Price: £5 + VAT

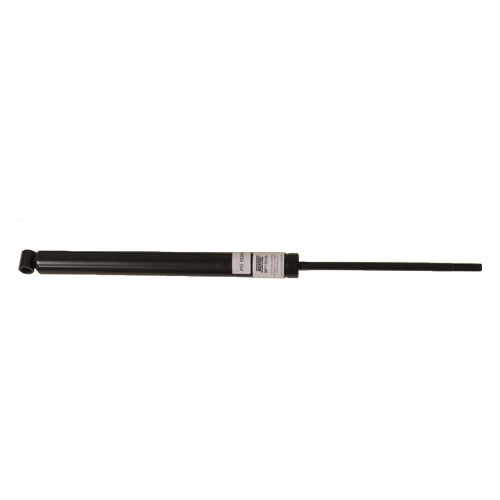

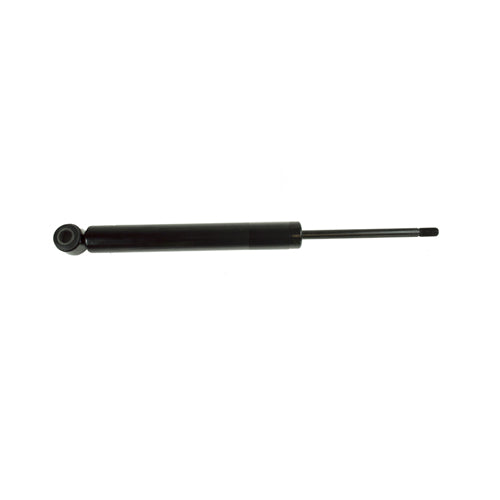

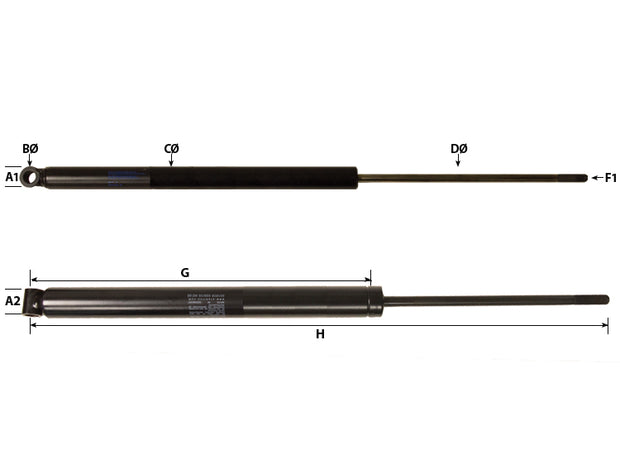

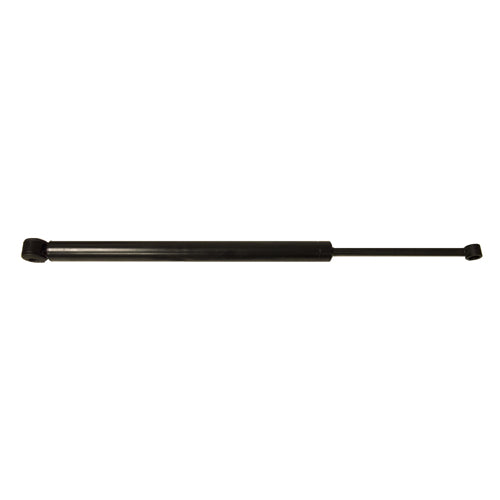

• Hitch / Coupling damper suitable for Knott KF/KR13 C/D trailers
• Quality over-run coupling dampers from German manufacturer Stabilus

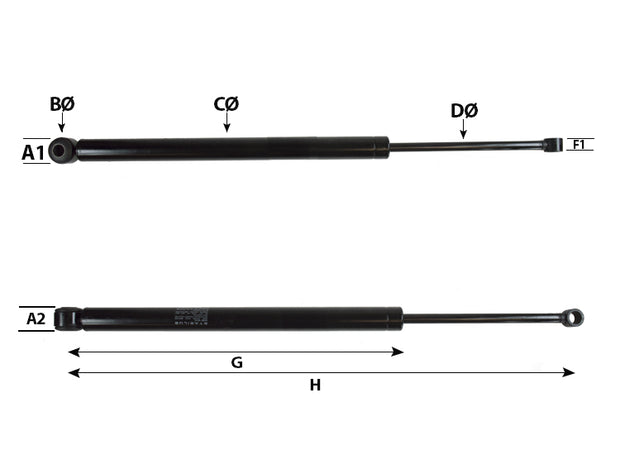

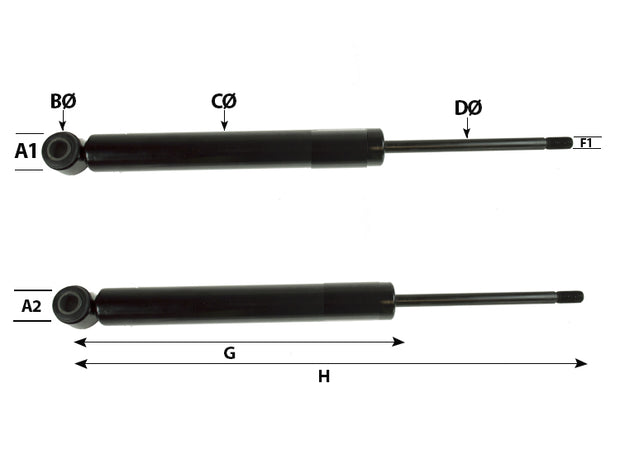

• Dimensions on drawing (mm);
  • A1 – 18
  • A2 – 24
  • B – 12
  • C – 29
  • D -10
  • F1 – 10
  • G – 320
  • H – 530
• Tension Force In N 2100
• Compression Force In N 550

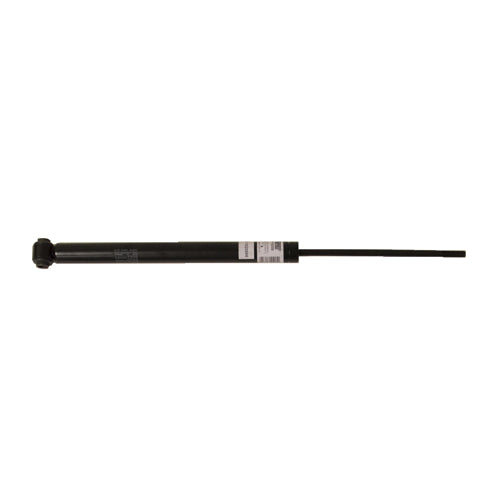

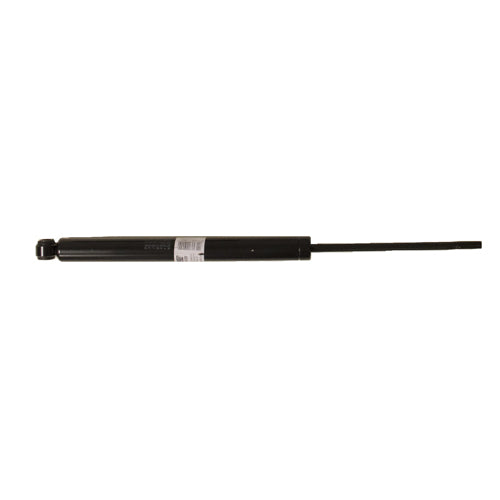

• Hitch / Coupling damper suitable for Knott KF/KR17-20 trailers
• Quality over-run dampers from German manufacturer Stabilus
• Dimensions on drawing (mm);
  • A1 – 26
  • A2 – 24
  • B – 12
  • C – 29
  • D -10
  • F1 – M10
  • G – 325
  • H – 530
• Tension Force In N 5100
• Compression Force In N 1250

Price: £37.50 + VAT

• Hitch / Coupling damper suitable for Knott KF27A/KFG30 (12mm) trailers
• Quality over-run dampers from German manufacturer Stabilus
• Dimensions on drawing (mm);
  • A1 – 18
  • A2 – 24
  • B – 12
  • C – 29
  • D -10
  • F1 – M10
  • G – 320
  • H – 530
• Tension Force In N 5200
• Compression Force In N 1300

Price: £37.50 + VAT

• Hitch / Coupling damper suitable for Knott KFG35
• Quality dampers from German manufacturer Stabilus
• Dimensions on drawing (mm);
  • A1 – 30
  • A2 – 39
  • B – 14
  • C – 29
  • D -10
  • F1 – M10
  • G – 325
  • H – 590
• Tension Force In N 5600
• Compression Force In N 2200

Price: £40 + VAT

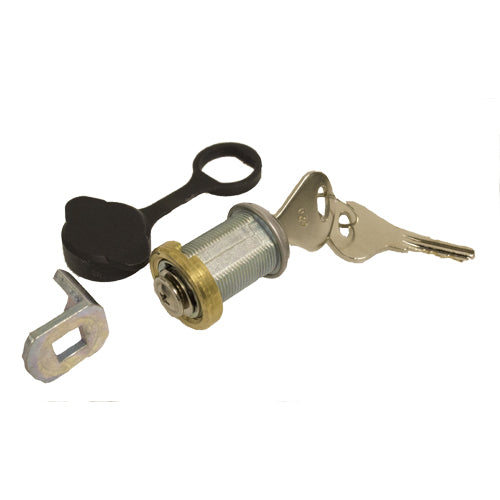

• Barrel Lock & Key Set for Knott Avonride Coupling Heads
• Replacement coupling barrel lock and key set for Knott-Avonride coupling heads up to 3500Kg
• Lock cover cap, two keys, lock housing pin and fitting instructions supplied
• Thousand of different key combinations
• Supplied with 2 years warranty

Price: £8.50 + VAT

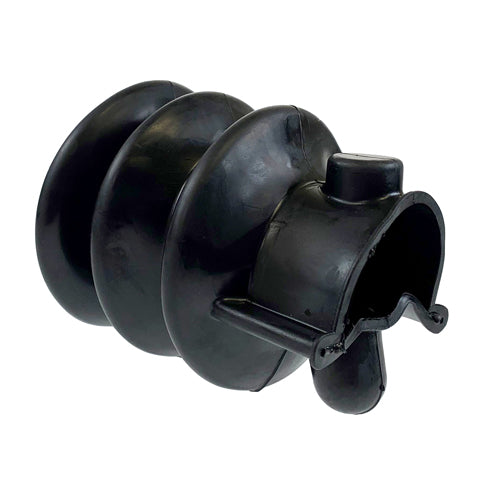

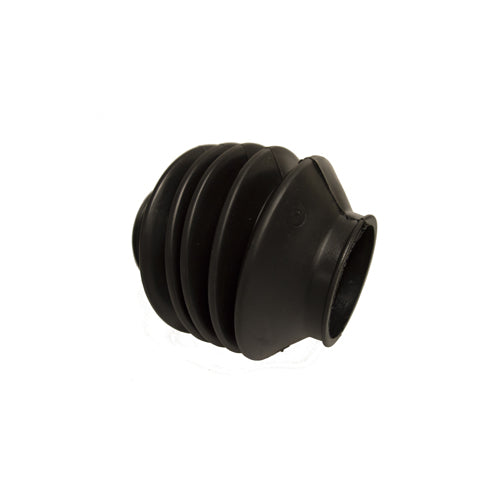

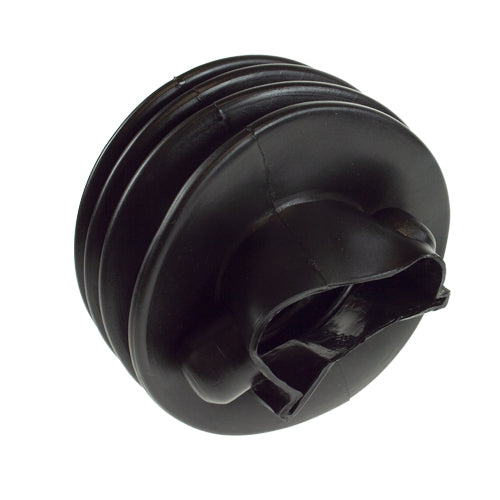

• Vented bellows without bolt cover for ALKO AKS 2004/3004 couplings
• 3 folds
• 35/55mm diameter
• 80mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area
• These bellows are vented to allow air and water to be forced out on compression when the brakes are applied

Price: £15 + VAT

• Bellows for Knott KFG35 couplings with bolt 75/70/3 folds, widely used on Ifor Williams Trailers (P00873 / Knott 577005)
• Widely used on Ifor Williams Trailers (P00873 / Knott 577005)
• 3 folds
• 75mm diameter
• 180mm length
• Made from PVC
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area

Price: £8.50 + VAT

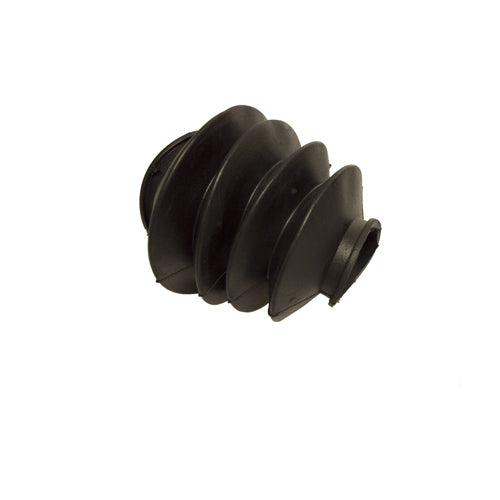

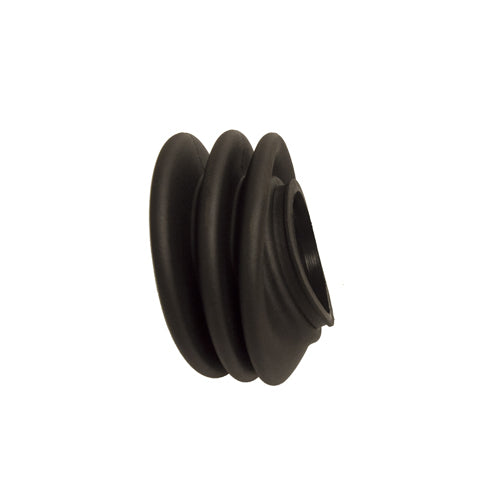

• Bellows for Bradley HU3 and EH27 cast couplings (H09-H26, EH09-EH27) (KIT107)
• 4 folds
• 60/45mm diameter
• 100mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area

Price: £7 + VAT

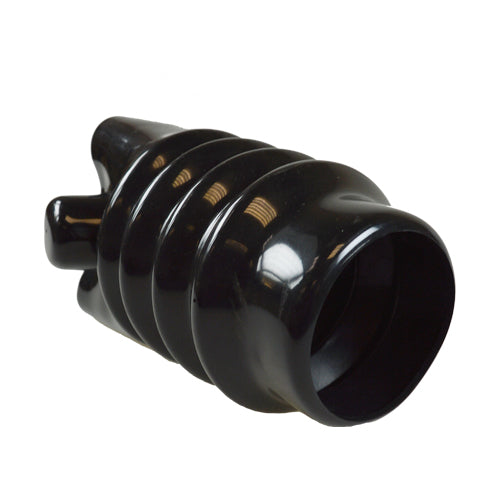

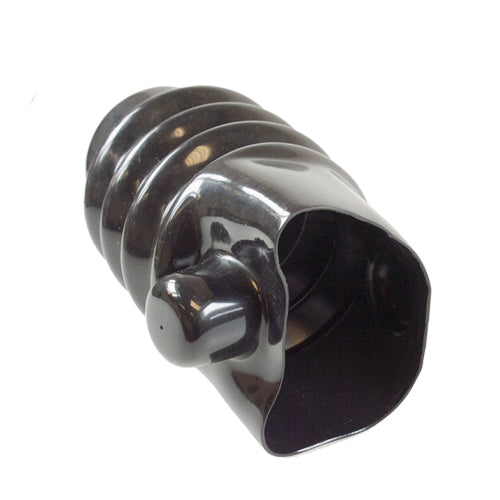

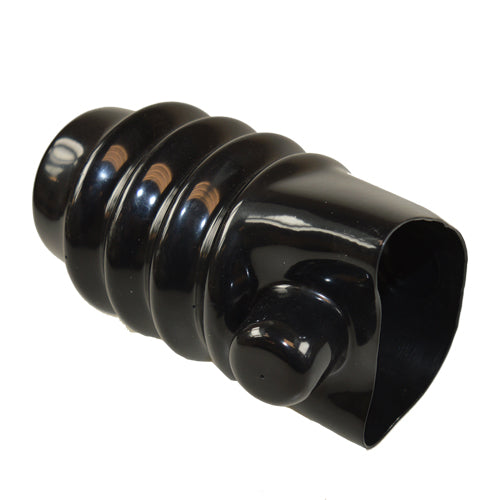

• Bellows with bolt cover suitable for Knott KF7.5-20 & KRV13-30 couplings
• 3 folds
• 60mm diameter
• 135mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area

Price: £8.00 + VAT

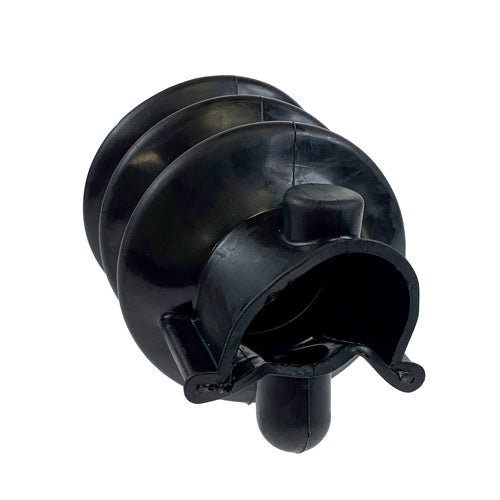

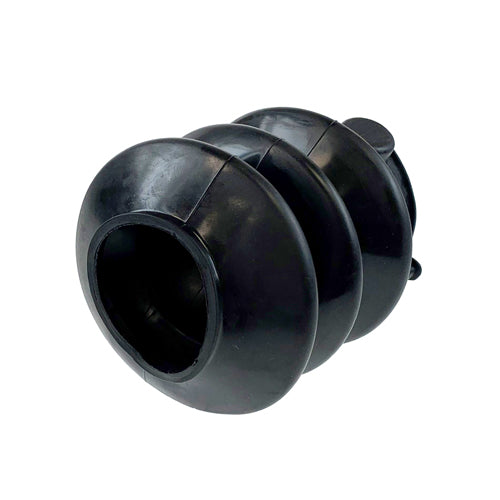

• Vented bellows with bolt cover for ALKO 161S / 251S couplings
• 4 folds
• 54/49mm diameter
• 125mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area
• These bellows are vented to allow air and water to be forced out on compression when the brakes are applied

Price: £8.50 + VAT

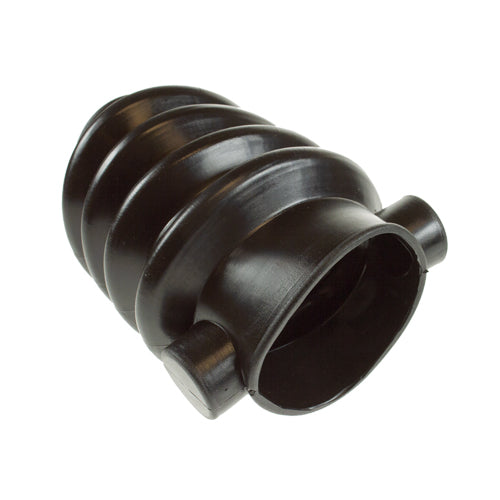

• Bellows without bolt cover
• Suitable for Knott KFG35 couplings with towing eye
• 4 folds
• 75/75mm diameter
• 140mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area

Price: £12.50 + VAT

• Vented bellows without bolt cover
• Suitable for vented bellows without bolt cover for Knott KFG13 to KFG30 couplings
• 5 folds
• 55mm diameter
• 140mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area
• These bellows are vented to allow air and water to be forced out on compression when the brakes are applied

Price: £8.50 + VAT

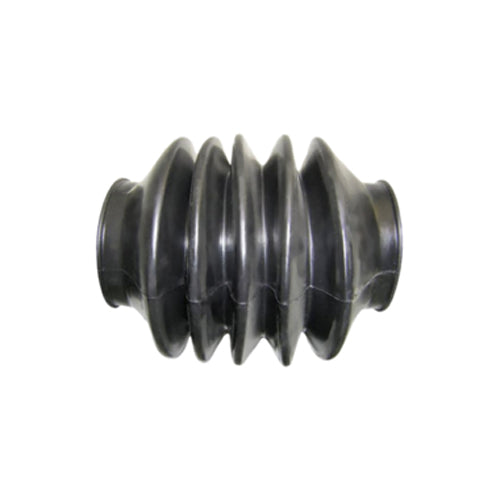

• Universal rubber bellows/gaiters for trailer and caravan couplings
• 5 folds
• 60mm diameter
• 120mm length
• Rubber material
• Adds protection to the drawtube by helping to prevent dust and dirt getting into the grease and bearing area
• These bellows are vented to allow air and water to be forced out on compression when the brakes are applied

Price: £6.25 + VAT

• Coupling damper suitable for Bradley HU3HE (post 1996)
• Quality dampers from German manufacturer Stabilus
• Dimensions on drawing (mm);
  • A1 – 28
  • A2 – 24
  • B – 12
  • C – 24
  • D -10
  • E – 12
  • F1 – 18
  • F2 – 14
  • G – 340
  • H – 495

Price: £45 + VAT

• Coupling damper suitable for Bradley HU12 3500kg couplings
• Quality dampers from German manufacturer Stabilus
• Dimensions on drawing (mm);
  • A1 – 30
  • A2 – 24
  • B – 14
  • C – 29
  • D – 10
  • F1 – M10
  • G – 240
  • H – 390
• Tension Force In N 6000
• Compression Force In N 1800

Price: £45 + VAT

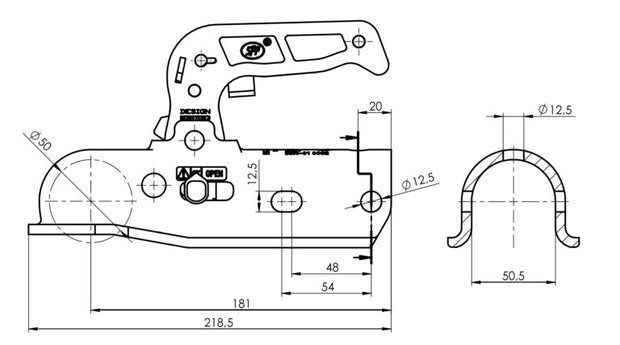

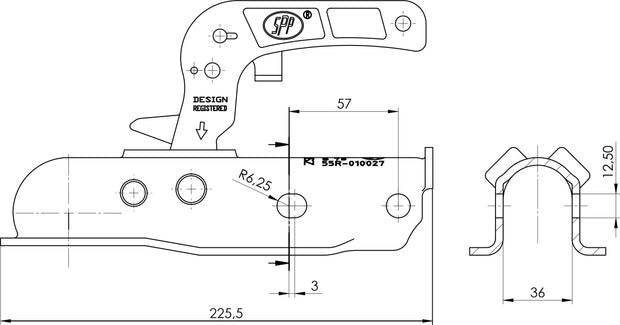

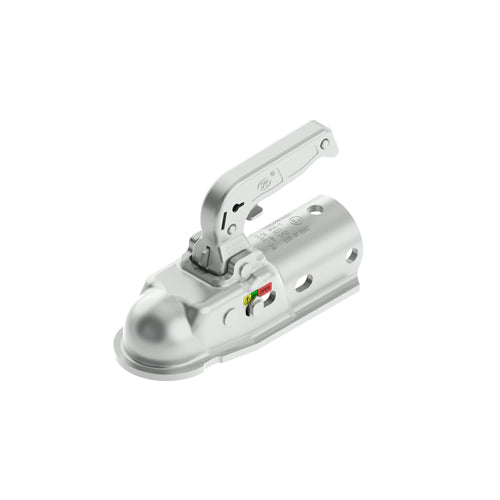

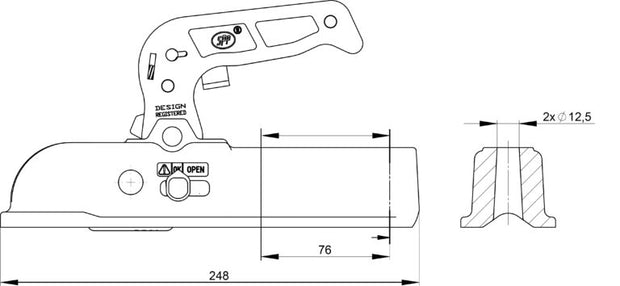

3000Kg Heavy Duty Pressed Steel 50mm Coupling for 50mm Round Tube Drawbars

• 2 x M12 bolts (min 10.9)
• Application up to 3000kg
• Suitable for use as a replacement for AL-KO AK300, Ifor Williams P0528
• Can be used as an alternative for Knott Avonride 575003, Ifor Williams PO0301
• Heavy duty pressed steel construction, zinc plated finish
• Mounting holes in the side and top surfaces
• R55 approved (D27, S150)
• With wear and correct attachment indicator
• Supplied without lock.

Price: £41.67 + VAT

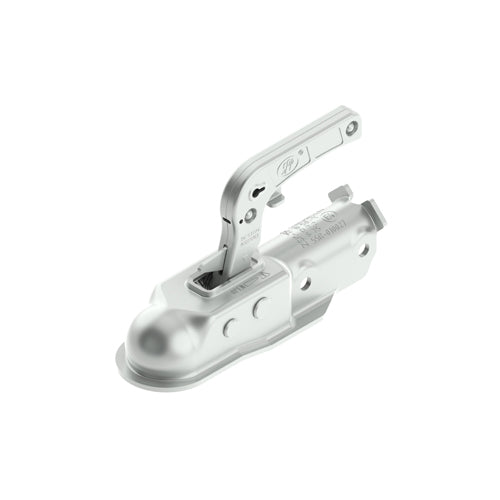

1700kg Pressed Steel 35mm Coupling for 35mm Round Tube Drawbars

• 2 x M12 bolts (min 10.9)
• Application up to 1700kg
• Suitable for use as a replacement for:
  • AL-KO AK160A
• Heavy duty pressed steel construction, zinc plated finish
• 54-57mm mounting holes in the side
• R55 approved (D15.8, S100)
• With wear and correct attachment indicator
• Supplied without lock.

Price: £37.50 + VAT
